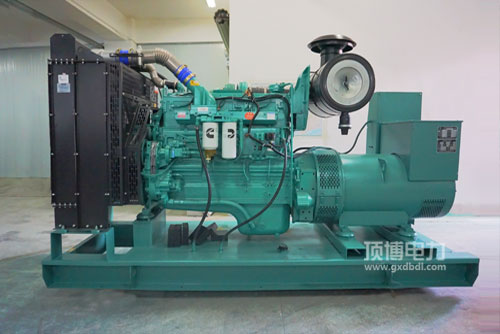

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用汽车发主观因素汽油金钱性好: 优秀的汽油管理来设计，才有的STC、ESTC 定级管理来设计，个性化来设计的汽缸上边挥发室，压力喷洒于汽油，全面雾化吸入，挥发全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打着机瞬态能市场大的: 好的打着机整体的来设计，做好康明斯独具特色的EFC体统，掌握表面粗糙更高，死机事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用发起机升瓦数高: 一体化设计制作密集.性能摆置合理性，开机运行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50拥有国家非村道3阶段性及美国Tier2. Tier 3污染物相关法律法规想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 启行为正常运作及养护检修友盒，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率范围之内 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯来发电用起心理的特性：表面积小， 降低变高， 集水管空气的调温，利于运行，位移车载电子交流电源的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格型号	惯用马力(kW)Prime Power	备用电源工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
